  • Bessey GSCC2.512 2.5-Inch x 12-Inch Economy Clutch Style Bar Clamp , Black

Bessey GSCC2.512 2.5-Inch x 12-Inch Economy Clutch Style Bar Clamp , Black

  • 211426
  • New
  • Out Of Stock

Bessey GSCC2.512 2.5-Inch x 12-Inch Economy Clutch Style Bar Clamp , Black

/

  • Secure payments

Options on how to get it

  • Store Pick Up Order now & pickup With-in 1-5 DaysFree
  • Ship to Home Order now & Ships within 24 hrsFree
  • Local Delivery 10 miles around Lodi, NJ$49
  • Product Overview
  • Mpn: GSCC2.512
  • Country of manufacture: China
  • Cast heads
  • Manufacturer: Bessey
  • Powder-coated finish


Clutch Style Bar Clamp, Opening (In.) 12, Throat Depth

(In.) 2-1/2, Load Capacity (Lb.) 600, Nominal Rail Size (In.) 3/4 x 1/4,

Nominal Clamping Pressure 600, Spindle Dia. (In.) 0.40, Pad Type Non-Marring,

Swivel on Anvil Surface, Swivel Type Replaceable, Swivel Pad (In.) 1, Screw

Size (In.) 0.4, Max. Jaw Opening (In.) 12, Clamp Face (In.) 1-1/8 x 1-5/8, Bar

Thickness (In.) 3/4, Bar Width (In.) 1/4, Bar Material Nickel-Plated, Drawn

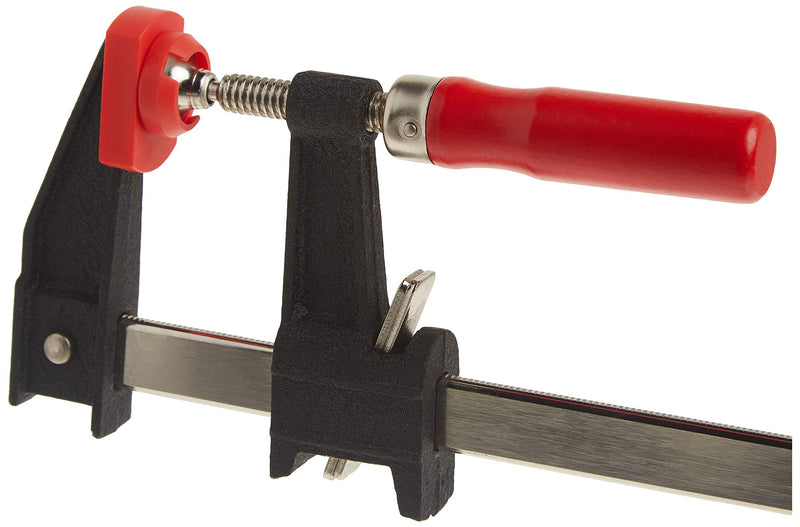

Steel Serrated Rail, Handle Length (In.) 3-1/2.  Bessey provides a zinc

finished rail with a two piece clutch plate system for opening and closing the

lower movable jaw. The Bessey clutch clamps are also provided with protective

pads on both the top and bottom jaws and come with a comfortable wooden

handle.
